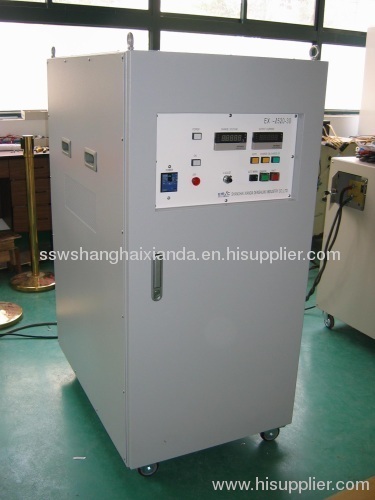

Magnetizing Machine Magnetizer Equipment

Price:	100.0~10000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air

Packing: Soly wood

Brand Name: EMIC-DCD

Production Capacity: 30 sets per month

Delivery Date: 30 days

The productions can magnetize permanent-magnet which are widely used in the automobile industry,rare-earth magnets,wind power equipment motors.

Model:   EX-4030-30, EX-4060-30, EX-40120-30, EX-40180-30, EX-40300-30
Input Power: AC220V 50-60Hz 60A,     AC380V 50-60Hz 60A
Max Output Current: 30,000                    30,000
Charge Voltage: DC200-4000V
Charge Time: 12s, 24s16s,24s, 40s
The Capacity of Condenser: 3,000uF, 6,000uF, 12,000uF, 18,000uF, 30,000uF
The Capacity Changing: 1000/2000/3000, 1000/2000/6000, 3000/6000/12000, 3000/6000/12000/18000
Main Switch: SCR
Discharge Ampere Meter(Compare Function): Have
Interior Discharge Circuit: Have
Weight: 1200kg, 2000kg, 3600kg, 4800kg, 7200kg

The optimal yokes and coils are designed and built according to request of customers.

The Advantages of EX Magnetizing Power

The EMIC-DCD magnetizing power is made by the EMIC technology including the designing,parts selecting,producing and testing.
The main advantages of the fixture are:

The repeat precision of the charge voltage is ±1V+1digit.
The operation is easy
The capacity of the condenser can be changed
High charge voltage and low output impedance
Built-in standard ampere meter with compare function
Built-in discharge circuit
High reliability and safety
Using main condenser and SCR passed the endurance tests more than 5 million times.
