Product Detail

Model No.: EX-2510-30

Production Capacity: 30 sets per month

Delivery Date: 30 days

Means of Transport: Ocean,Air

Packing: Soly wood

Brand Name: EMIC-DCD

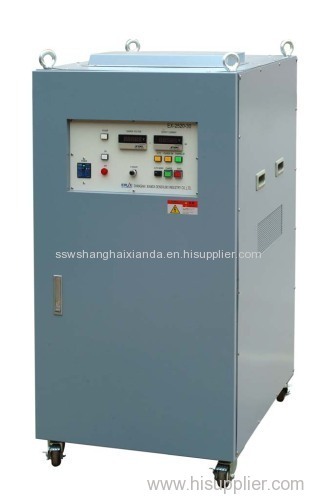

The productions can magnetize all kinds of permanent-magnet materials which are widely used in the automobile industry,rare-earth metal magnets motor.

Main uses of magnetizing powers:
Type of 1000V
Magnetizing of speaker,earphone,speedometer and automobile motor equipment magnets, and single magnets.
Type of 1500V
Multi-pole magnetizing of rare earth metals,plastic ferrite cores,inner material magnetizing of
micromotors,PM stepping motors,VTRs,small flat motors,fan motors,small DC motors,magnetic encoders,and FG
Type of 2500V
Magnetizing of rare earth metals(SmCo,NdFeB),and of AC servo motor,hybrid/PM stepping motor,movement for watches,magnetron principal axis motor,focus actuator,air-condition motor,and refrigeration motor equipment magnets
Type of 4000V
Magnetizing of large size rare earth metals(SmCo,NdFeB),and of electrical vehicle motor,big servo motor and linear servo motor,and IPM motor and wind power equipment magnets.

The Advantages of EX Magnetizing Power

The EMIC-DCD magnetizing power is made by the EMIC technology including the designing,parts selecting,producing and testing.
The main advantages of the fixture are:

The repeat precision of the charge voltage is ±1V+1digit.
The operation is easy
The capacity of the condenser can be changed
High charge voltage and low output impedance
Built-in standard ampere meter with compare function
Built-in discharge circuit
High reliability and safety
Using main condenser and SCR passed the endurance tests more than 5 million times.

Uses of the special magnetizing powers
Type of 1504,1506
Magnetizing of micrometers either in or outer ways.The magnetized motors'distributions
of magnet fields will be in highly uniformity.

Type of 1510-20II,2510-30II
Magnetizing of multi-pole teeny pole distance rare earth metals,one equipment may match with two
yokes or two coils

Type of 1510-30IIV
Polar-anisotropic and tropism magnet automatically can be located at the right magnetizing position
according to the polarizing axis of magnets

Type of 4030-30II

Two work-position uses jointly one magnetizer,magnetizing independently with different voltage.
